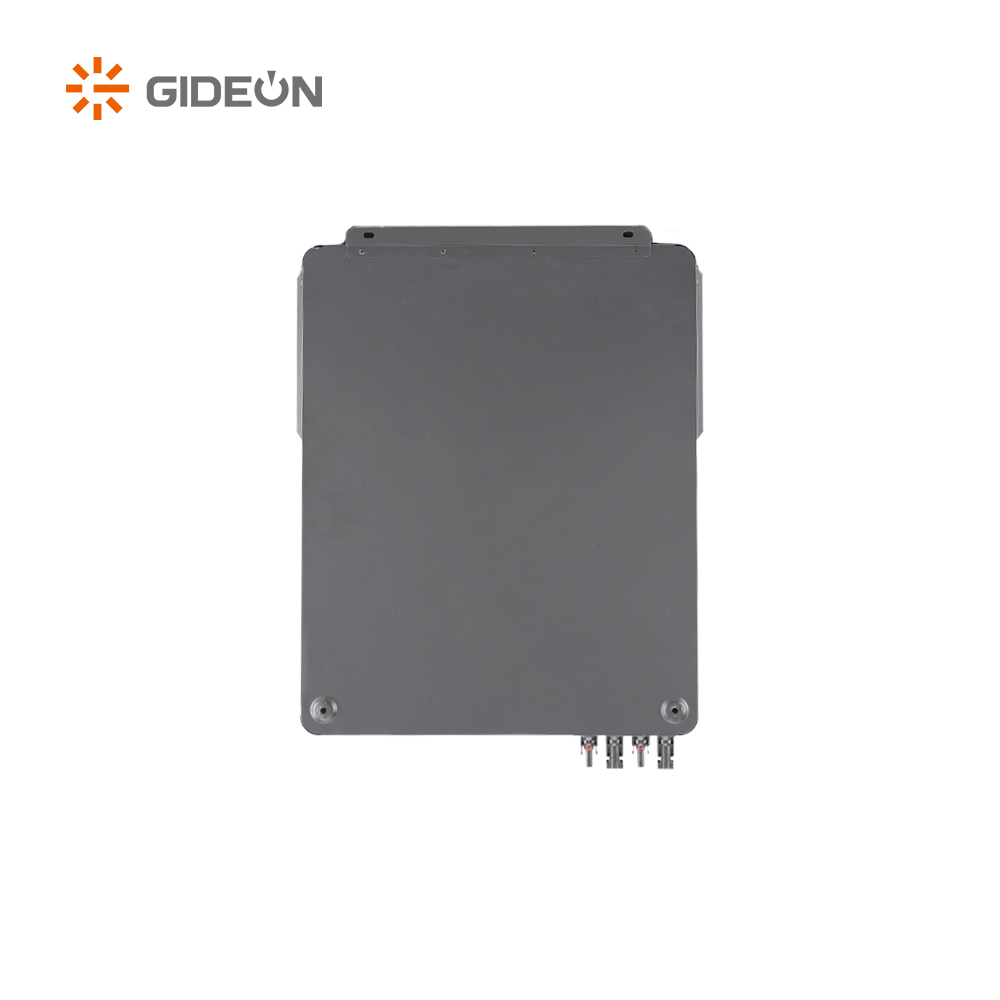

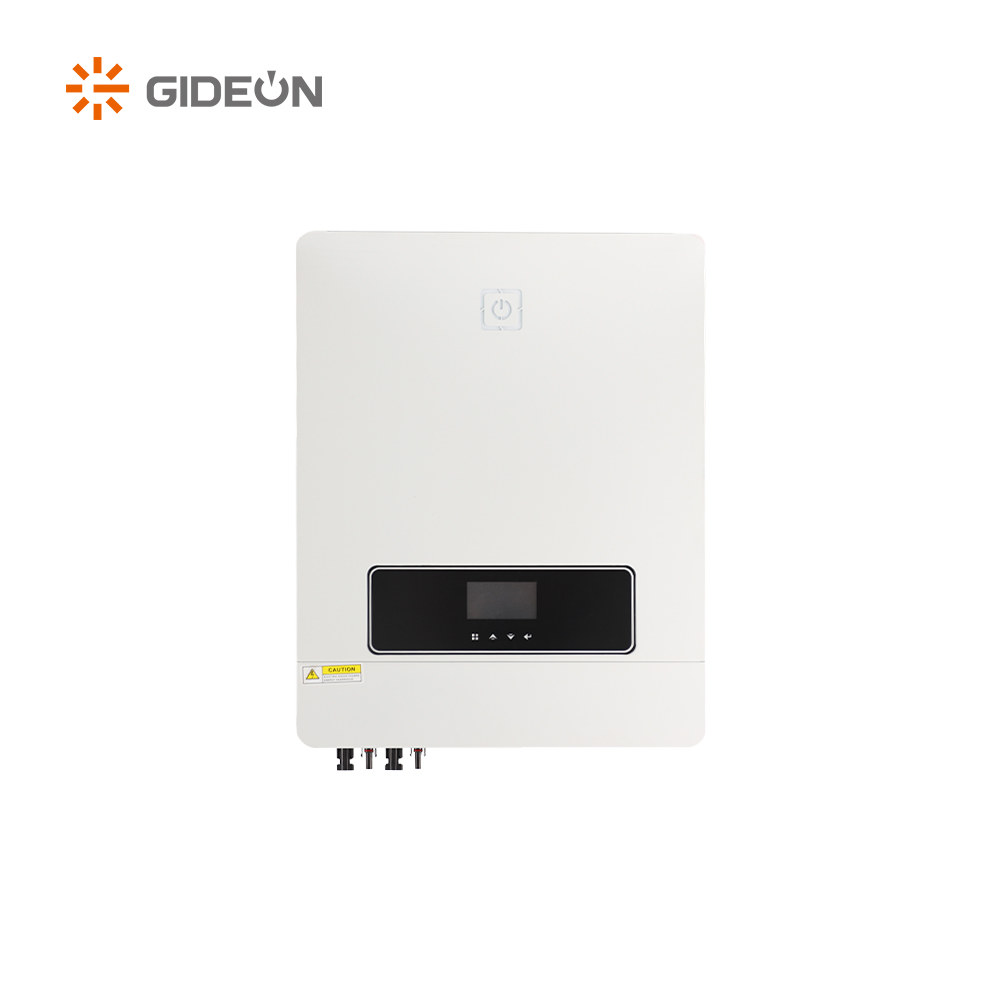

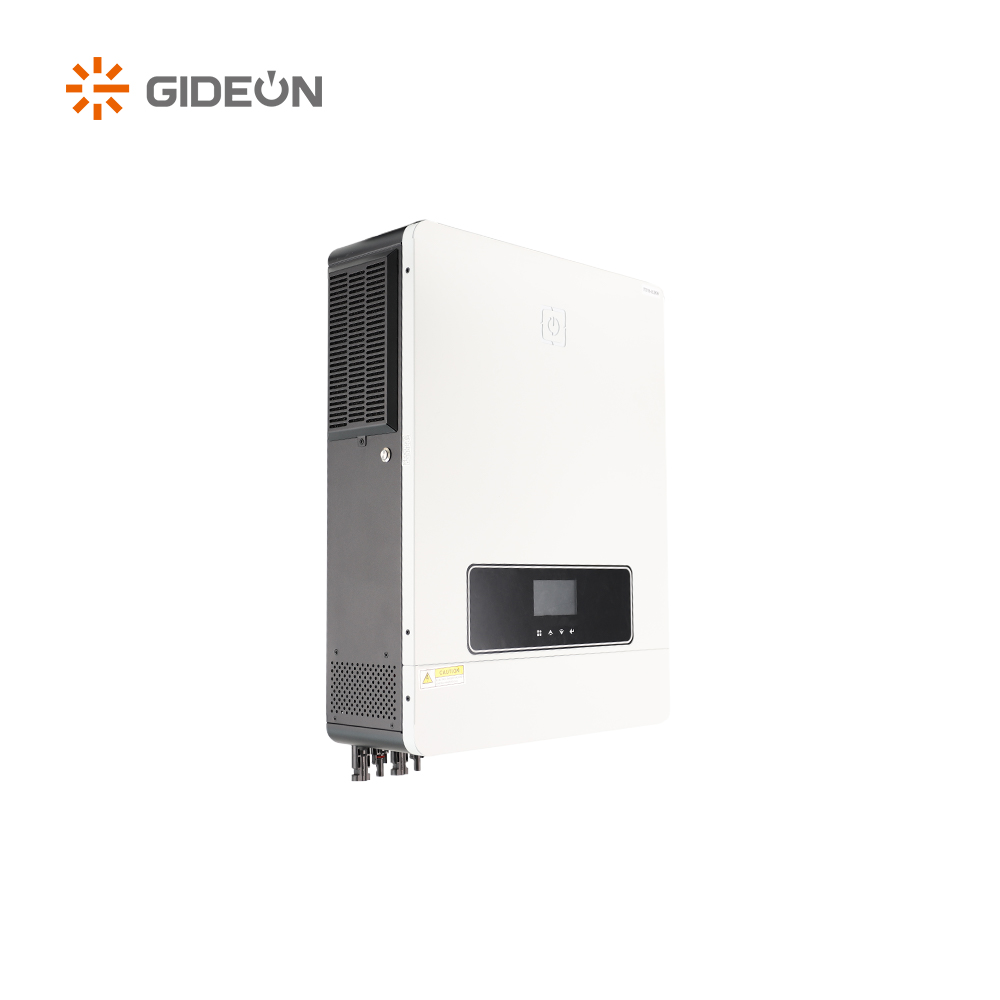

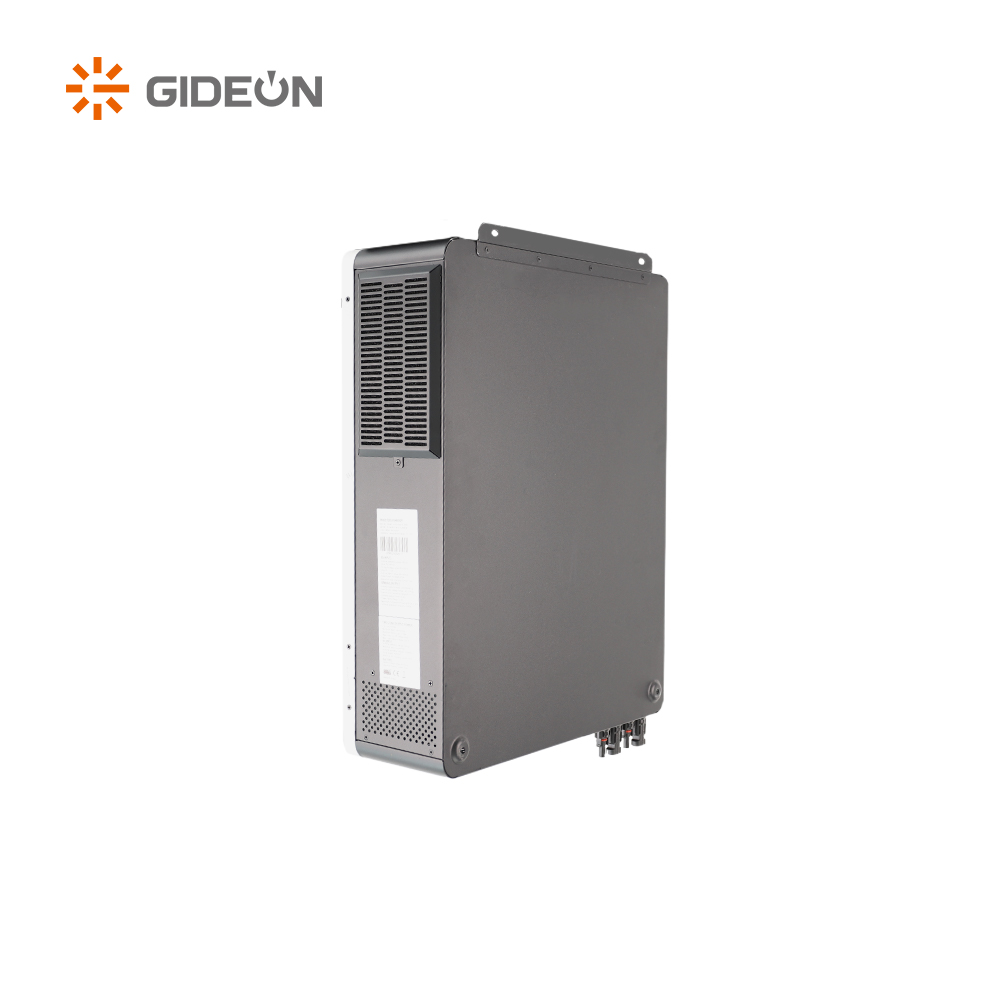

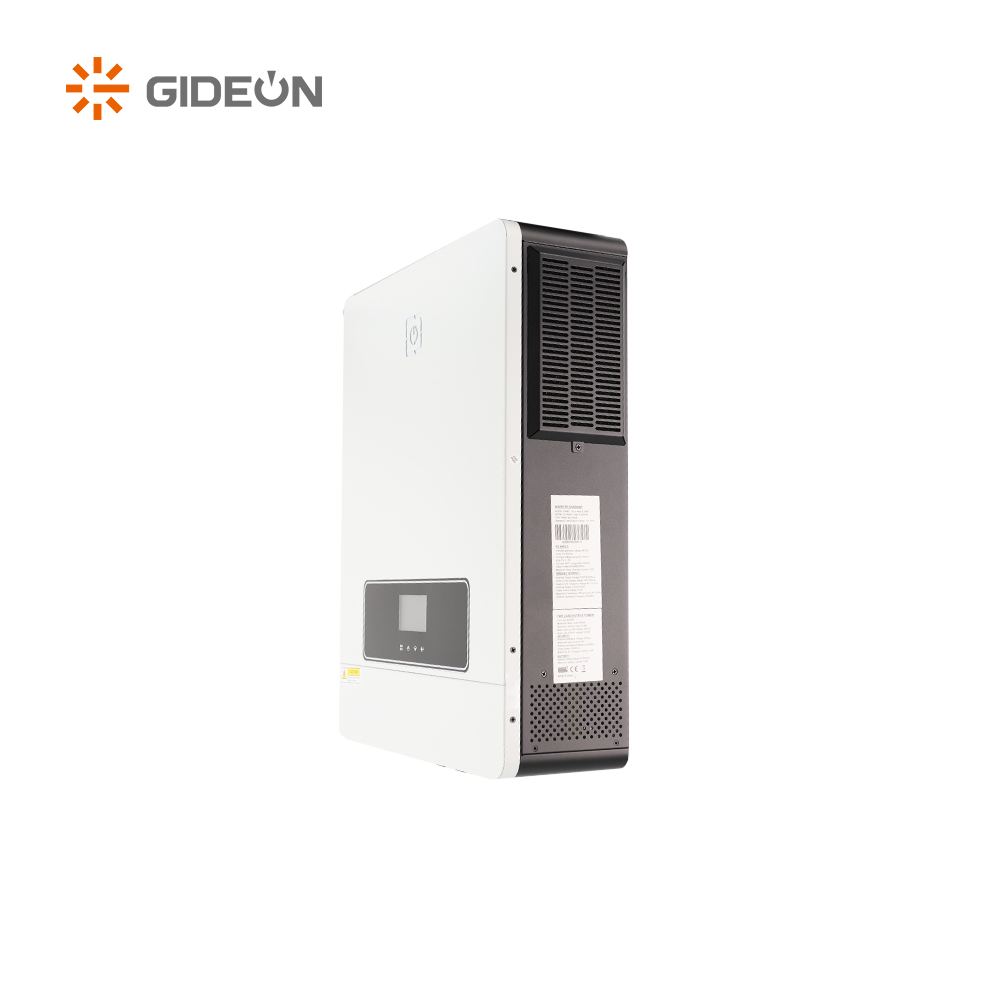

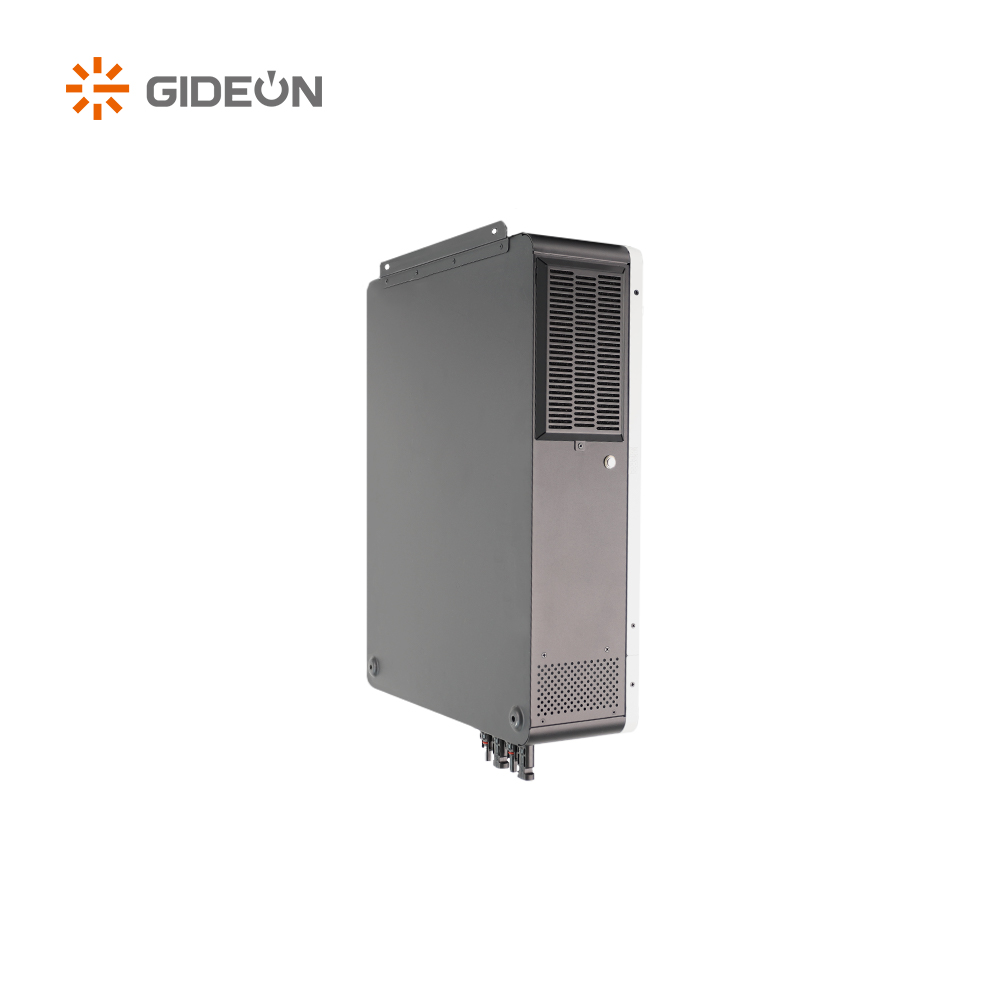

GD-IT018 8200/10200W Off-grid Solar Inverter with MPPT Solar System

Maximum Solar Charging Current : 160A
GRID-TIE OPERATION PV INPUT ( DC)
Normal DC Voltage / Maximum DC Voltage : 360VDC / 500VDC
Start-up Voltage / Initial Feeding Voltage : 90VDC / 120VDC
MPPT Voltage Range : 90VDC-450VDC
Number of MPPT Trackers / Maximum Input Current : 1 / 27A
Normal Output voltage : 230VAC
Output voltage range : 195-253VAC
Normal Output current : 35.6A
Power Factor : > 0.99
Full load : 8200W
Maximum Main Load : 8200W
Maximum Second Load ( battery mode ) : 2733W
Main Load Cut off voltage : 44VDC
Main Load Return voltage : 48VDC
OFF-GRID OPERATION AC INPUT
AC Start-up voltage / Auto restart voltage : 120-140VAC / 180VAC
Acceptable input voltage range : 90-280VAC or 170-280VAC
Maximum AC input current : 40A
Surge power : 16400W
BATTERY & CHARGERNormal DC voltage : 48VDCMaximum Solar charging current :160AMaximum AC charging current : 140A


Availability:
Quantity:
  • GD-IT018

  • GIDEON

Product Information

GD-IT018详情页_01

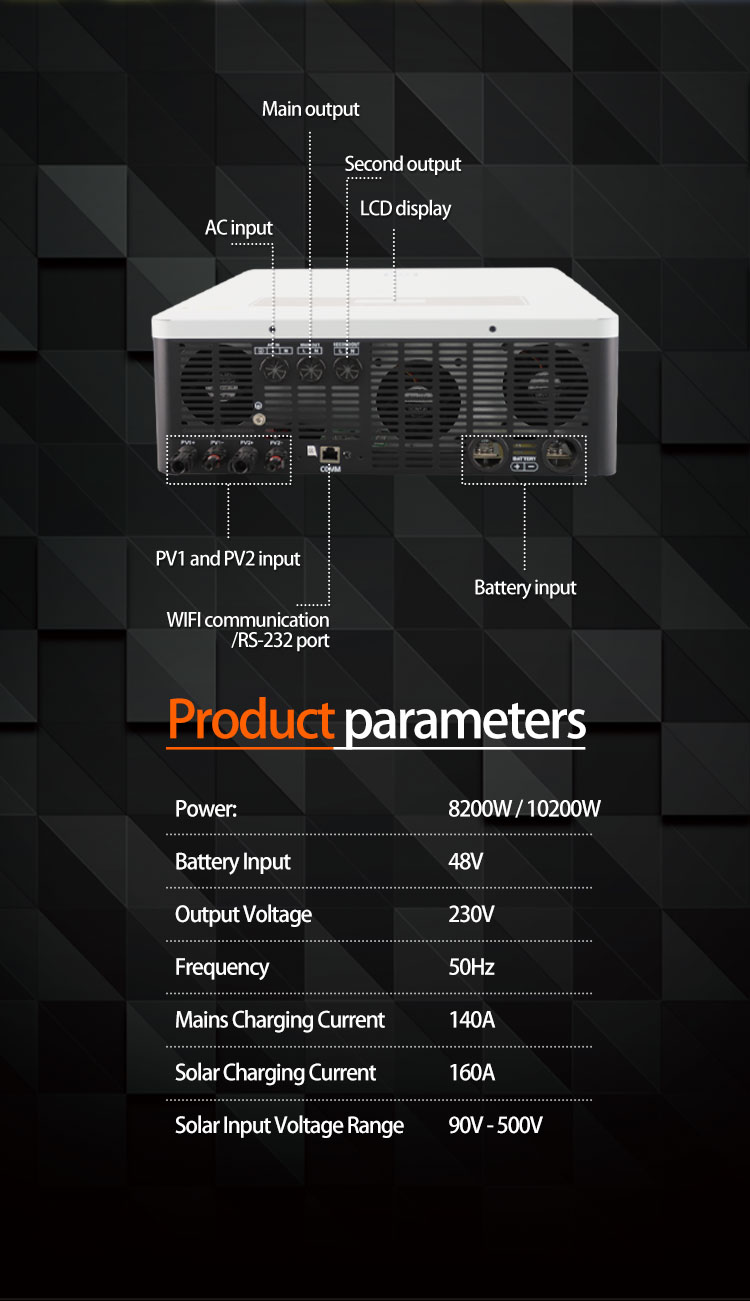

Product Parameters

GD-IT018详情页_02

project Numeric value
Battery input 48V
Output voltage 230V
Frequency 50Hz
Mains charging current 140A
Solar charging current 160A
Solar input voltage range 90V-500V
Power 8200/10200W

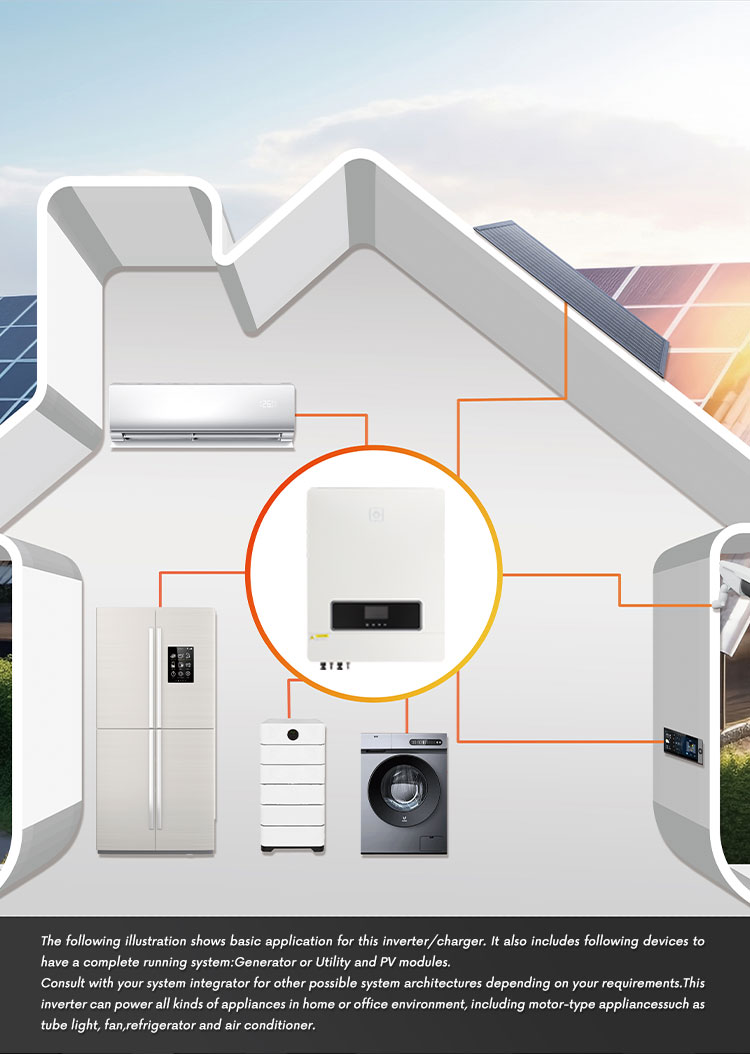

Product Appliance

GD-IT018详情页_03

FAQ

Q1. Can I have the sample?

Yes, we provide the sample with retail price.And the sample cost will be returned back to you once you place an order.


Q2. What is the price?

The price depends on the product and quantity. You can leave your preferred product model and requirements as well as your contact information. We will contact you as soon as possible after seeing the information.


Q3. What is the MOQ requested for the order?

Normally our MOQ is between 10-2000pcs, it depends on the product, you can leave the product model you need and we will send you the MOQ.


Q4. How do you ship the goods and how long does it take to arrive?

Normally we will send samples by express, other cases can be shipped by sea or air, if you have other needs, we will try our best to meet them.


Q5. What is your warranty?

Normally, we provide 1-2 years warranty.


Q6. What is your payment method?

We usually accepted the 30% T/T deposit and balance payment before shipment. For the other payment method also can be negotiated.


Q7. Catalog

Please leave your whatsapp or email address. We will send catalog to you.
