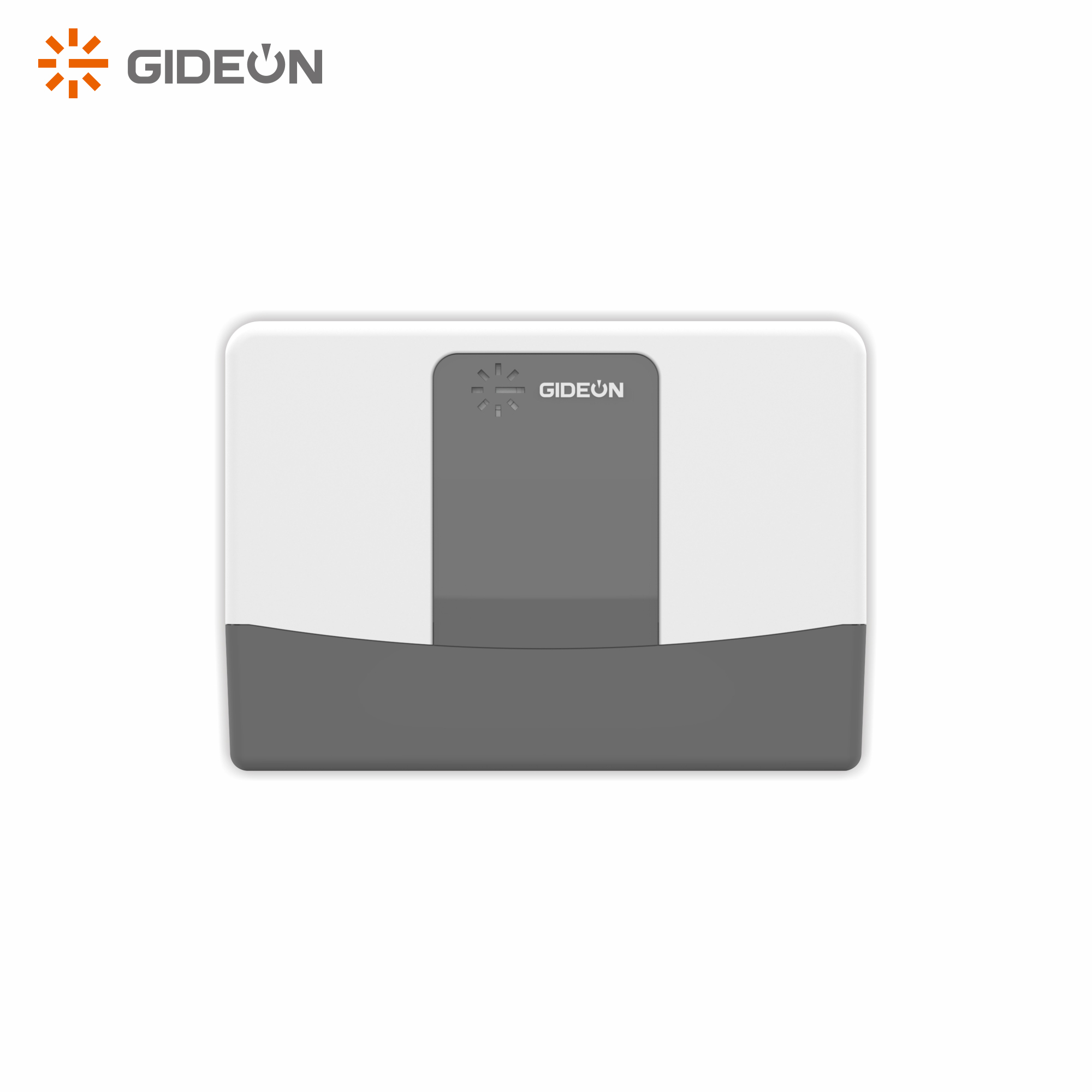

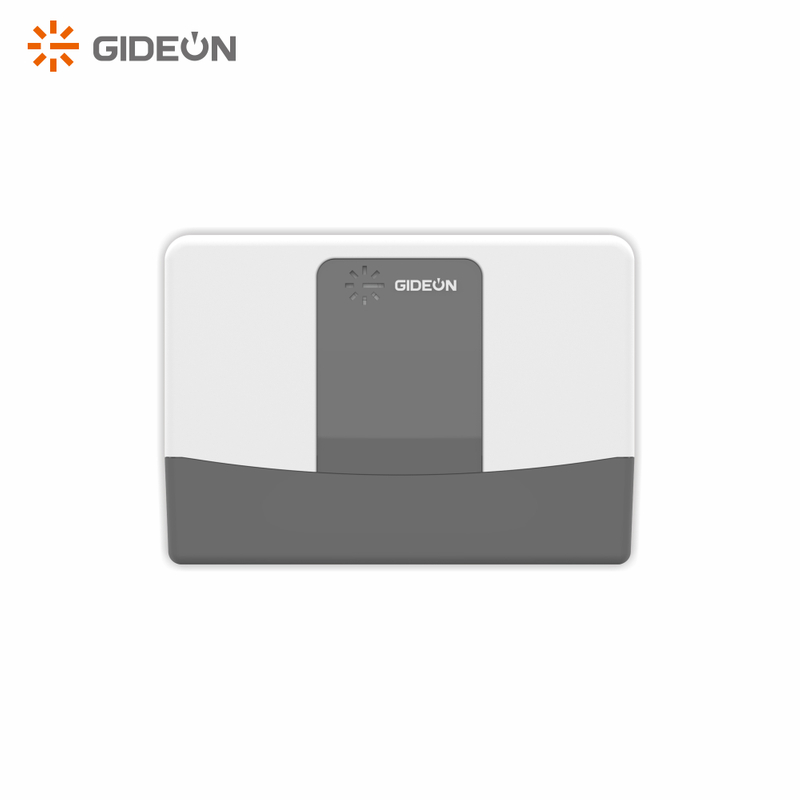

GD-V586 120V TV Guard with 90-140V Over/Under Voltage Protection/140J Surge Protection

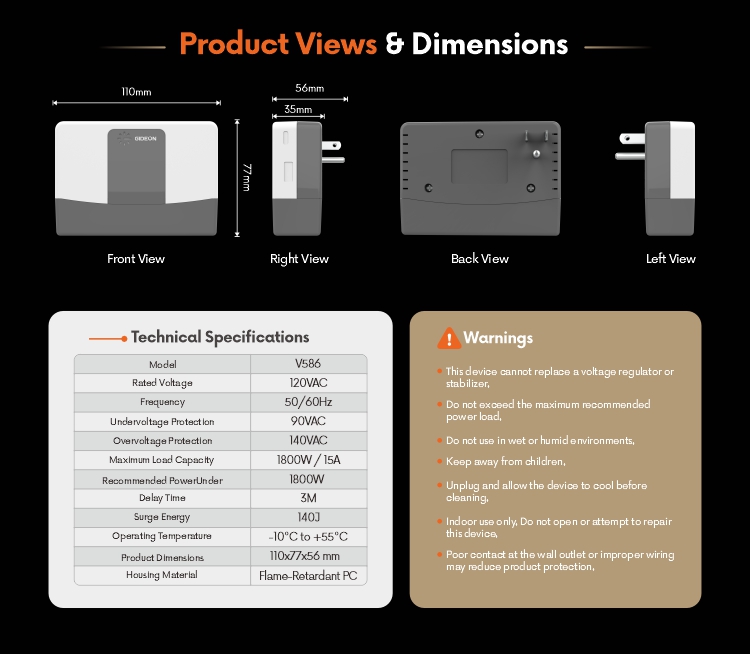

Work voltage :120V
Frequency:50/60Hz
Current:15A
Delay time: 3M
Under voltage:90V
Over voltage:140V
Surge Protection:140J
Availability:
Quantity:
  • GD-V586

  • GIDEON

Product Description

  1. Over/Under Voltage Protection: When the voltage exceeds the limit, the power is automatically cut off to prevent damage to electrical appliances caused by overvoltage or undervoltage.

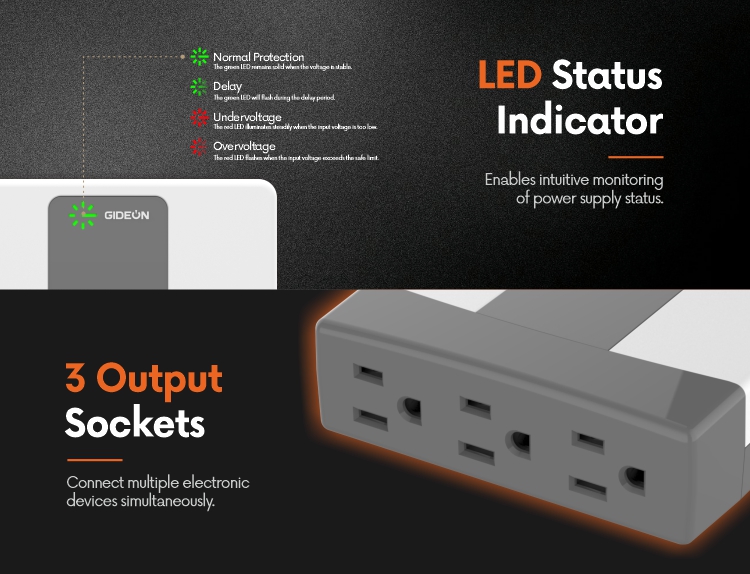

  2. LED Status Indicator: Real-time indication of the product's working status, clear and eye-catching.

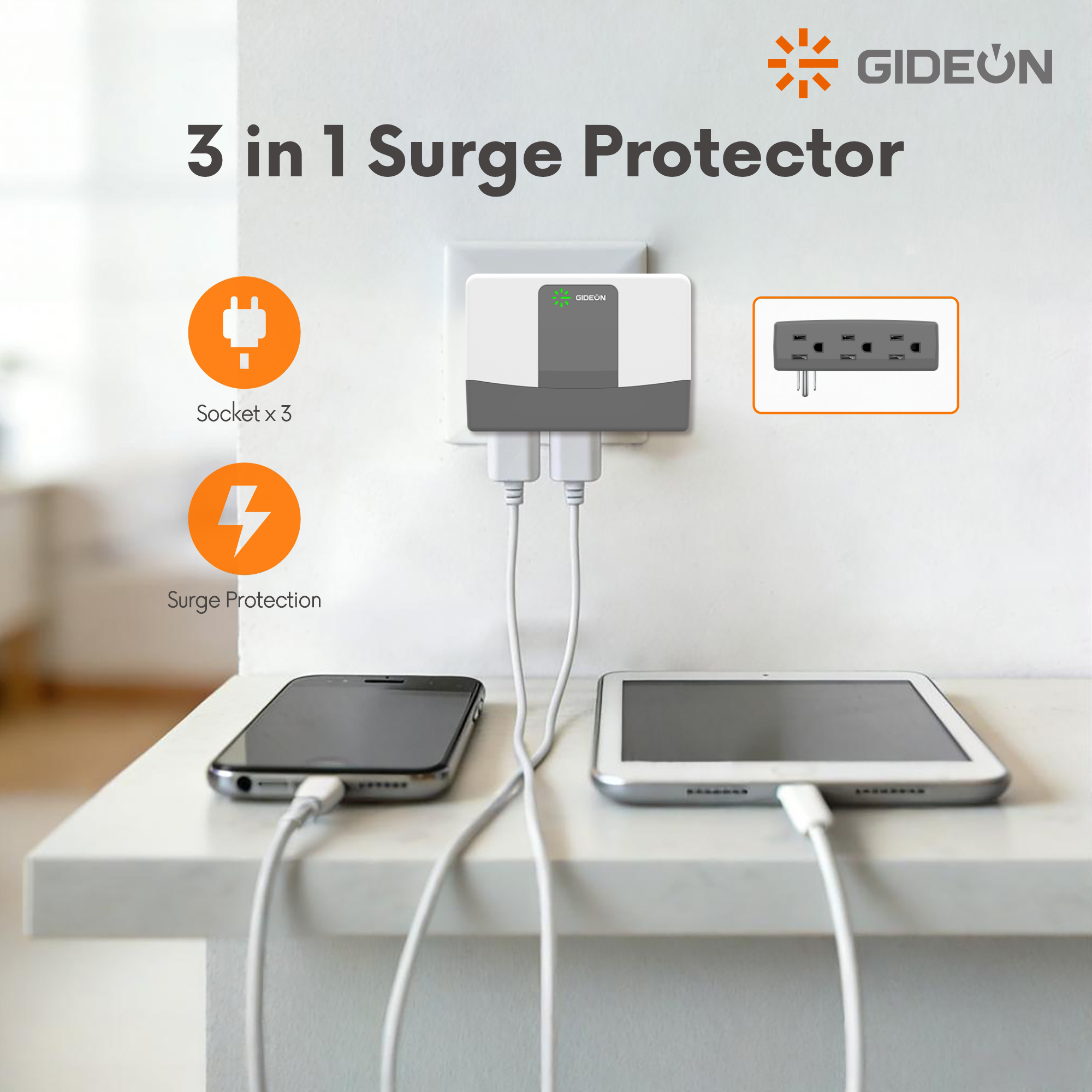

  3. USB Interface (V586-USB): Dual interface (Type-A ×1, Type-C ×1), output rated voltage / maximum current: 5V / 2.1A (MAX).

  4. Upgraded Housing Material: High-quality brand housing material, offering enhanced durability and a more refined appearance.

  5. Upgraded Core Relay: 15A relay upgraded to 30A, significantly improving load capacity and stability.

  6. Upgraded Safety Performance: Full adoption of safety capacitors (previously polyester capacitors), greatly optimizing circuit safety and reliability.

  7. Upgraded Core Controller: Upgraded high-precision chip technology, greatly improving measurement and control accuracy.

  8. LED Status Indicator: Real-time indication of the product's working status, clear and eye-catching.

  9. Phosphor Bronze Contact Parts: Excellent electrical conductivity, corrosion resistance, and wear resistance.

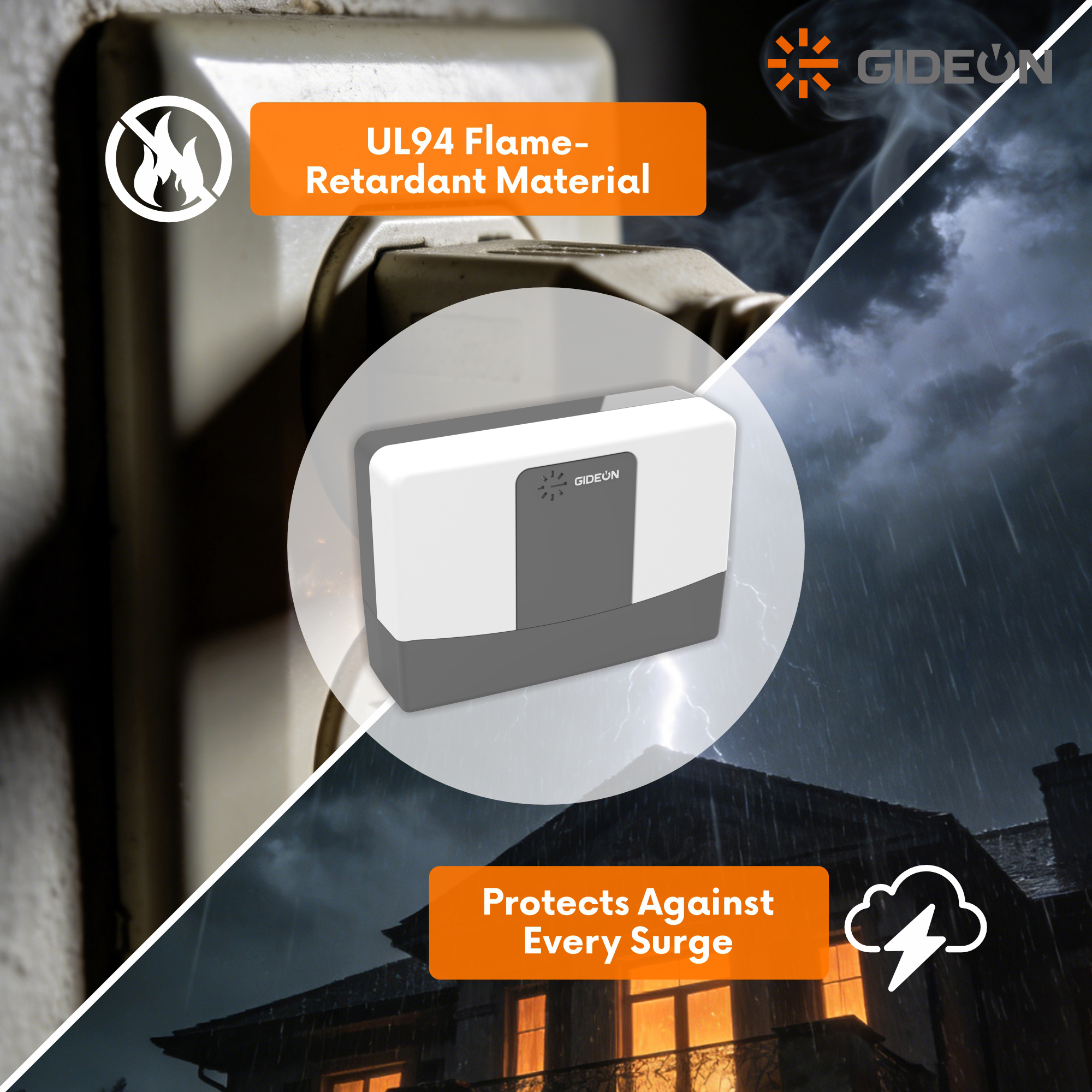

  10. Flame-retardant Housing: Complies with UL94 flame retardant rating test standard.

Product Details
