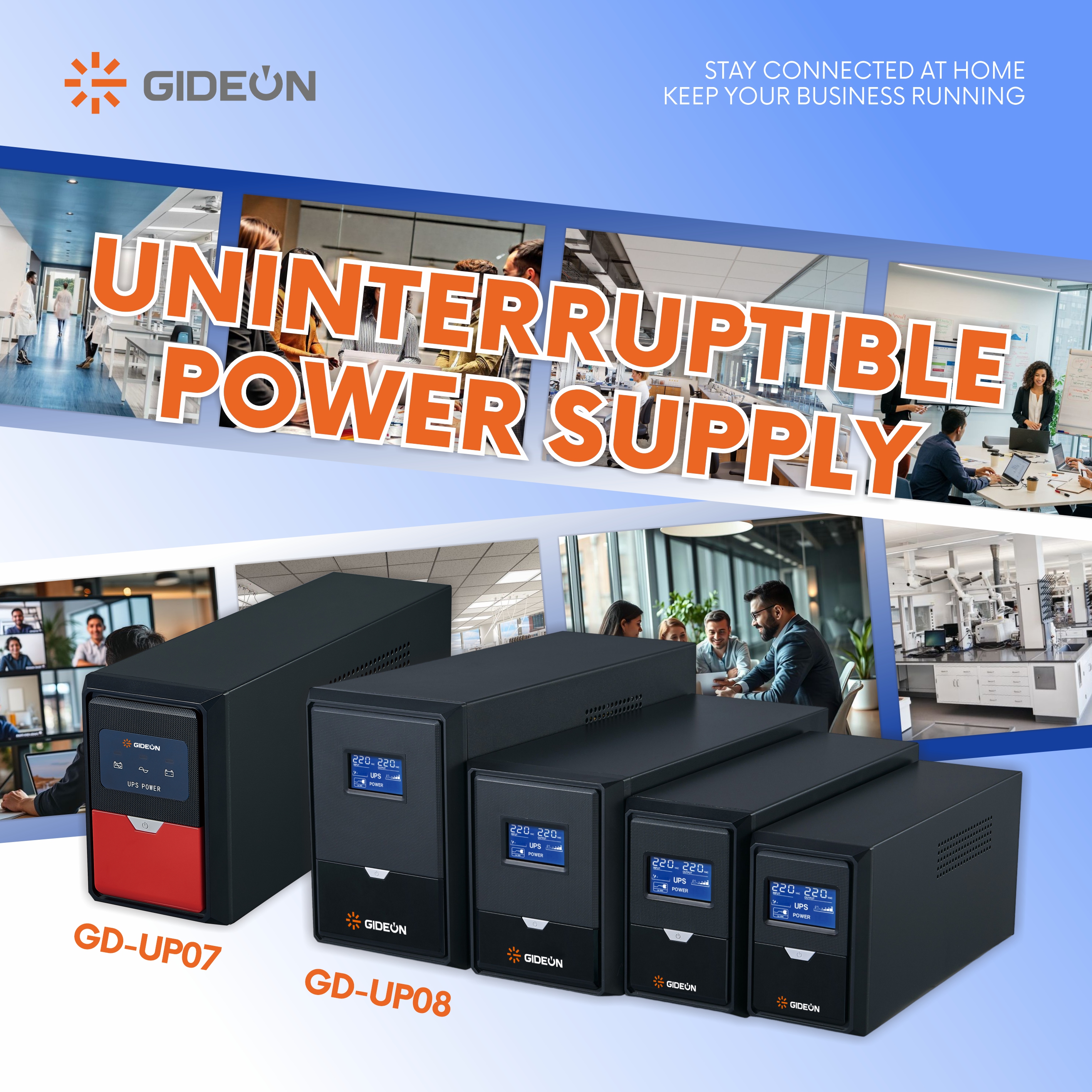

How To Use The GD-UP07/08 Series Uninterruptible Power Supply

GIDEON's GD-UP07/08 Series Uninterruptible Power Supply (UPS) provides enterprises with a reliable power backup solution. Follow these steps for proper setup and operation to ensure optimal performance and equipment safety.

Step-by-Step Usage Guide

1.Connect to Mains Power

• Plug the UPS into a standard AC power outlet to charge its internal battery.

• For initial use, charge the unit for at least 6 hours to ensure optimal battery performance.

2.Connect Your Equipment

• Plug critical devices such as servers, computers, or networking equipment into the designated "Battery Backup" outlets on the rear panel.

• Important: Do not connect high-power devices like laser printers or scanners to these ports to avoid overloading the UPS.

3.Power On the UPS

• Press the power button to turn on the unit. The LCD display will show real-time status updates.

• Once powered on, the UPS will provide continuous voltage regulation and backup power protection.

4.During a Power Outage

• The UPS will automatically switch to battery mode within 4-6ms, ensuring uninterrupted operation.

5.Post-Outage Recharging

• After power is restored, the UPS will automatically return to charging mode.

• Allow the unit to recharge fully before subsequent use to prolong battery life.

Key Features Enhancing Usability

• Wide Voltage Compatibility: Adapts to input voltages from 145VAC to 275VAC

• Smart Charging Technology: Fast charging (6 hours to 90%) with intelligent trickle charging

• User-Friendly LCD Interface: Displays load capacity, battery level, and operational mode

Pro Tips for Enterprises

• Connect only essential devices to extend runtime during outages

• Regularly test the UPS functionality to ensure emergency readiness

• Maintain the unit in a cool, dry environment for optimal performance
