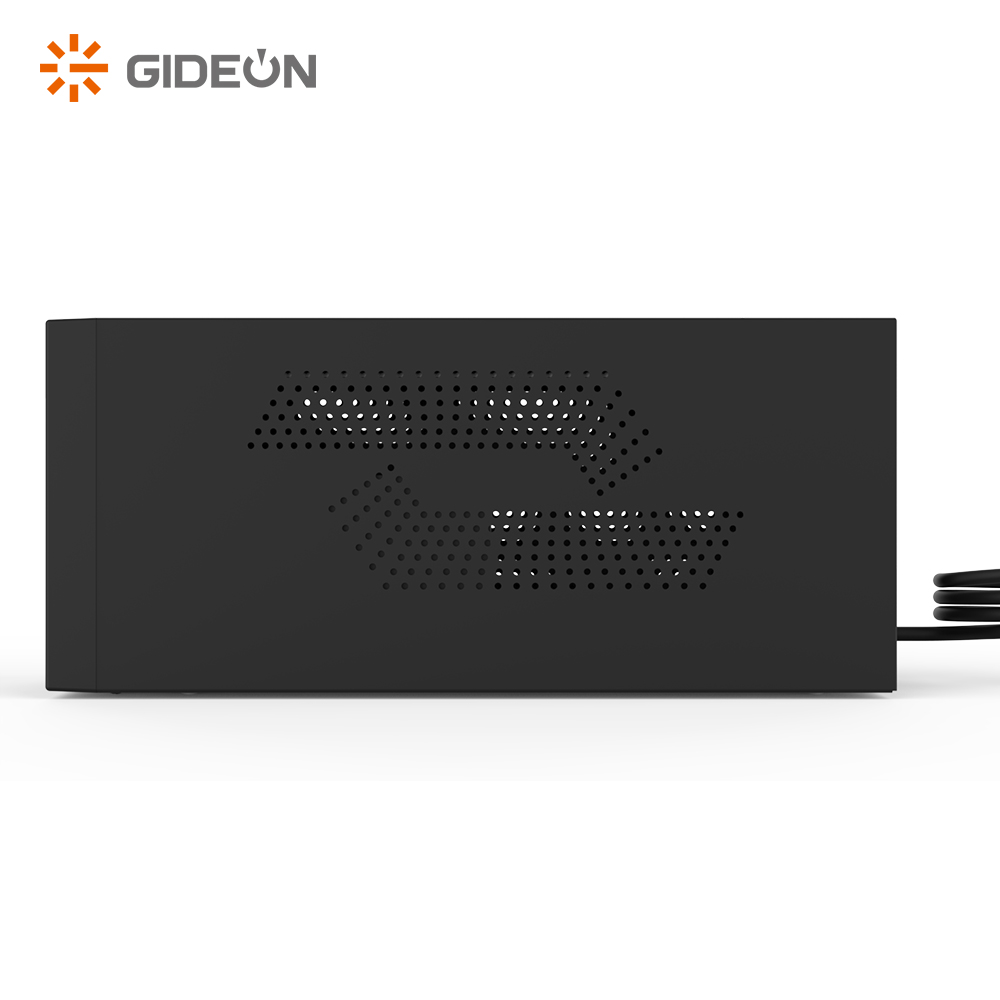

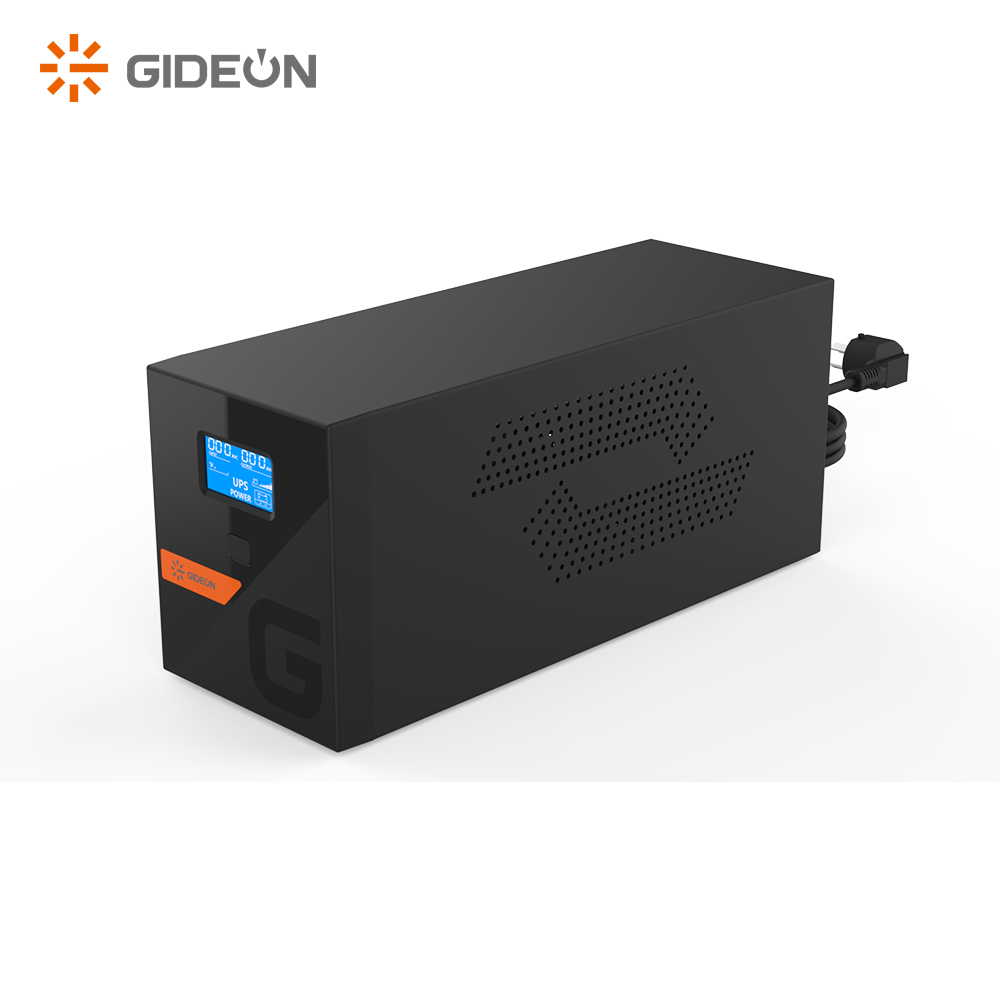

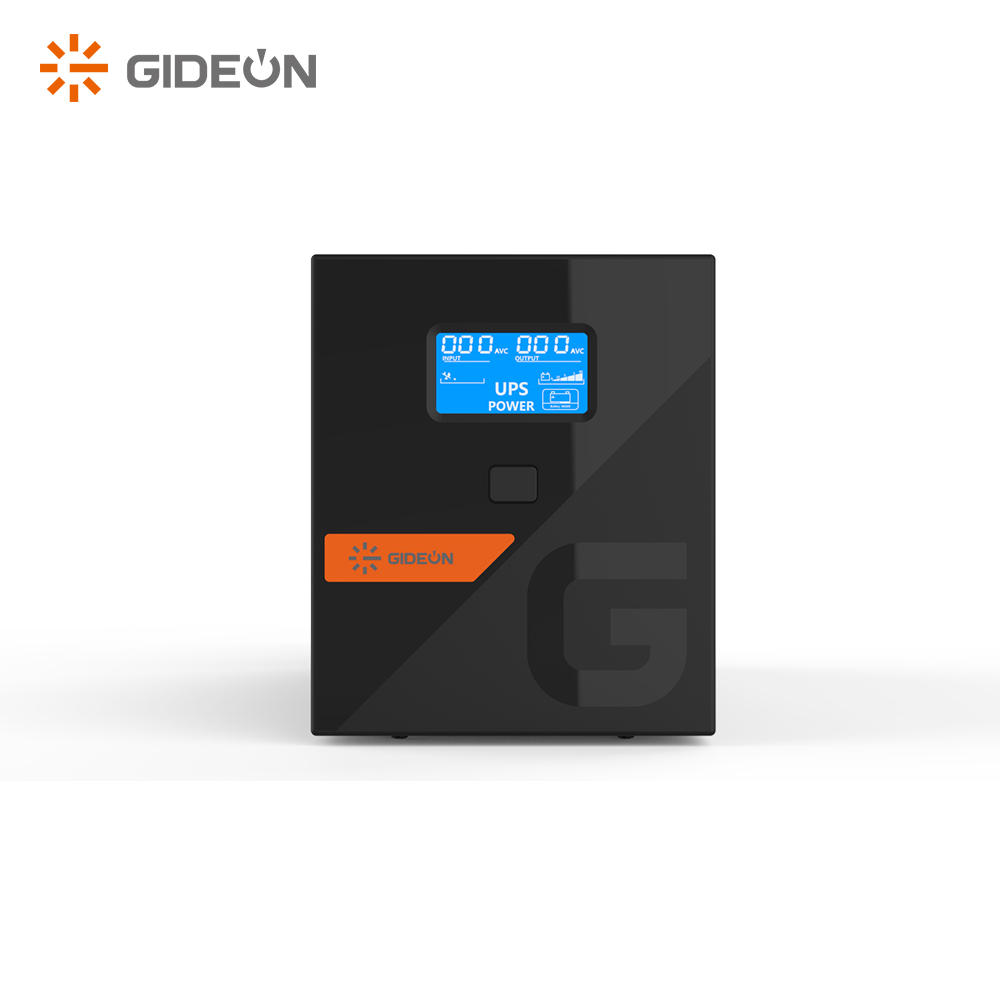

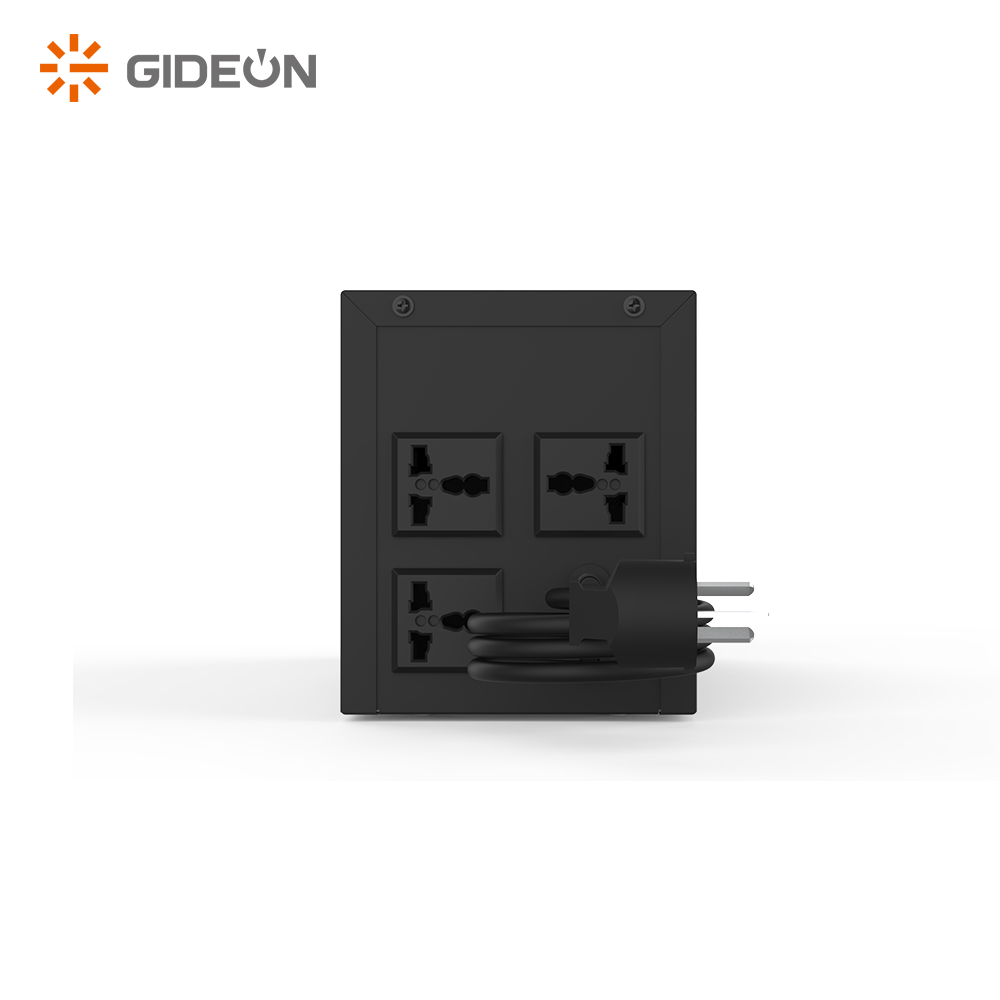

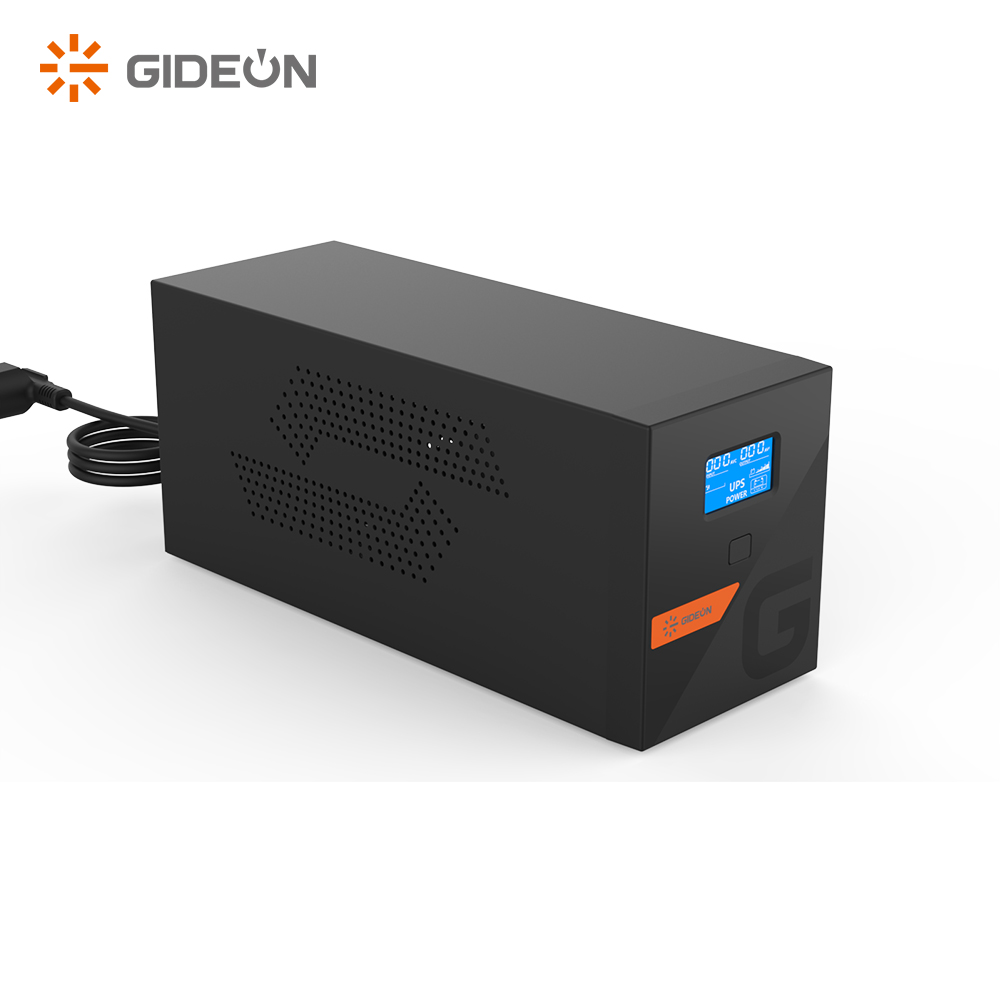

GIDEON 220V Intelligent Standby UPS Offline Uninterruptible Power Supply with Universal Outlets full Protection for Home PC

Capacity options

650VA/390W, 800VA/480W, 1000VA/600W, 1200VA/720W, 1500VA/900W, 2000VA/1200W

Input voltage

110/120 VAC or 220/230/240 VAC (Auto sensing)

Input voltage range

81-145 VAC or 145-275 VAC

Input frequency

50/60 Hz (Auto sensing)

Output voltage (AC mode)

110/120 VAC or 220/230/240 VAC ±10%

Output voltage (battery mode)

Same as above, ±10%

Frequency range (battery mode)

50/60 Hz ±1Hz

Transfer time

4-6ms

Waveform (battery mode)

Simulated sine wave / stepped wave

Battery configuration

650VA: 12V/7Ah x1
800VA: 12V/9Ah x1
1000VA: 12V/7Ah x2
1200VA: 12V/7Ah x2
1500VA: 12V/9Ah x2
2000VA: 12V/9Ah x2

Charge time

8 hours recover to 90% capacity

Protection functions

Discharge protection, short circuit protection, overload protection

LCD display content

AC mode, Battery mode, Load level, Battery level, Input voltage, Output voltage, Overload, Low battery

LED indicators

Green: AC mode
Red: Battery mode
Yellow: Battery charge mode

Audible alarms

Battery mode: every 4 seconds
Low battery: every second
Overload: every second
Fault: continuous sounding

Communication port (optional)

USB or RS-232
Supports Windows XP/Vista/7/8, Linux, Unix, Mac

Operating humidity

0-90% RH (Non-condensing)

Operating temperature

0-40°C

Noise level

Less than 40dB

Special features

Intelligent CPU control
Auto restart while AC is recovering
Boost and buck AVR for voltage stabilization
Cold start function
Off-mode charging
Mute function in battery mode
LCD screen can be turned off (in AC/Battery mode)
