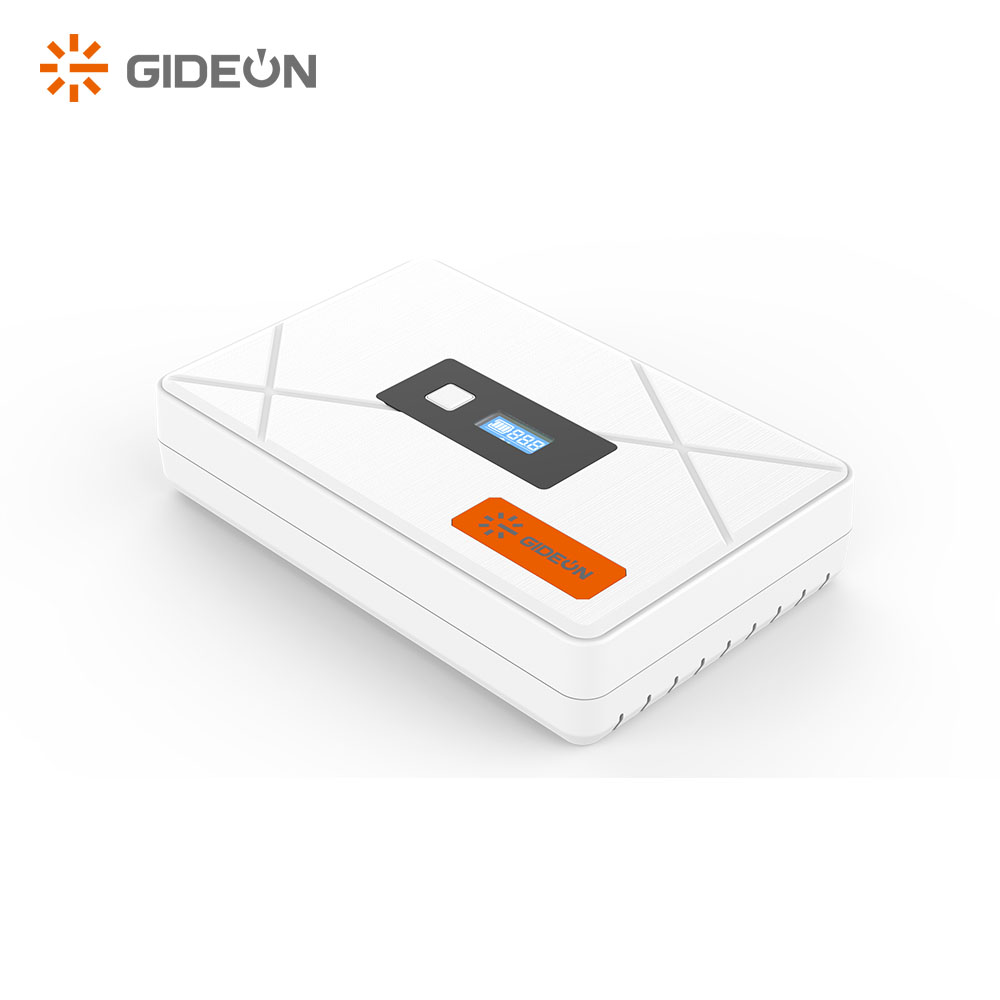

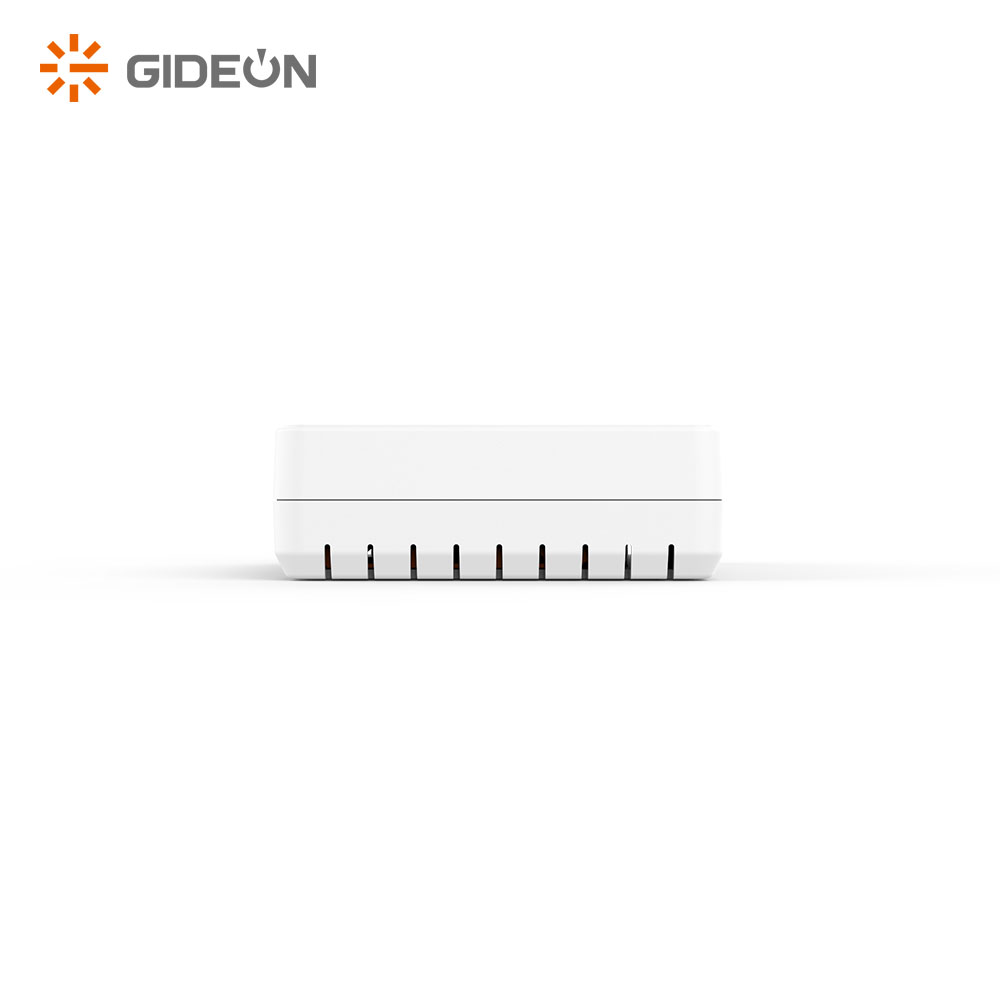

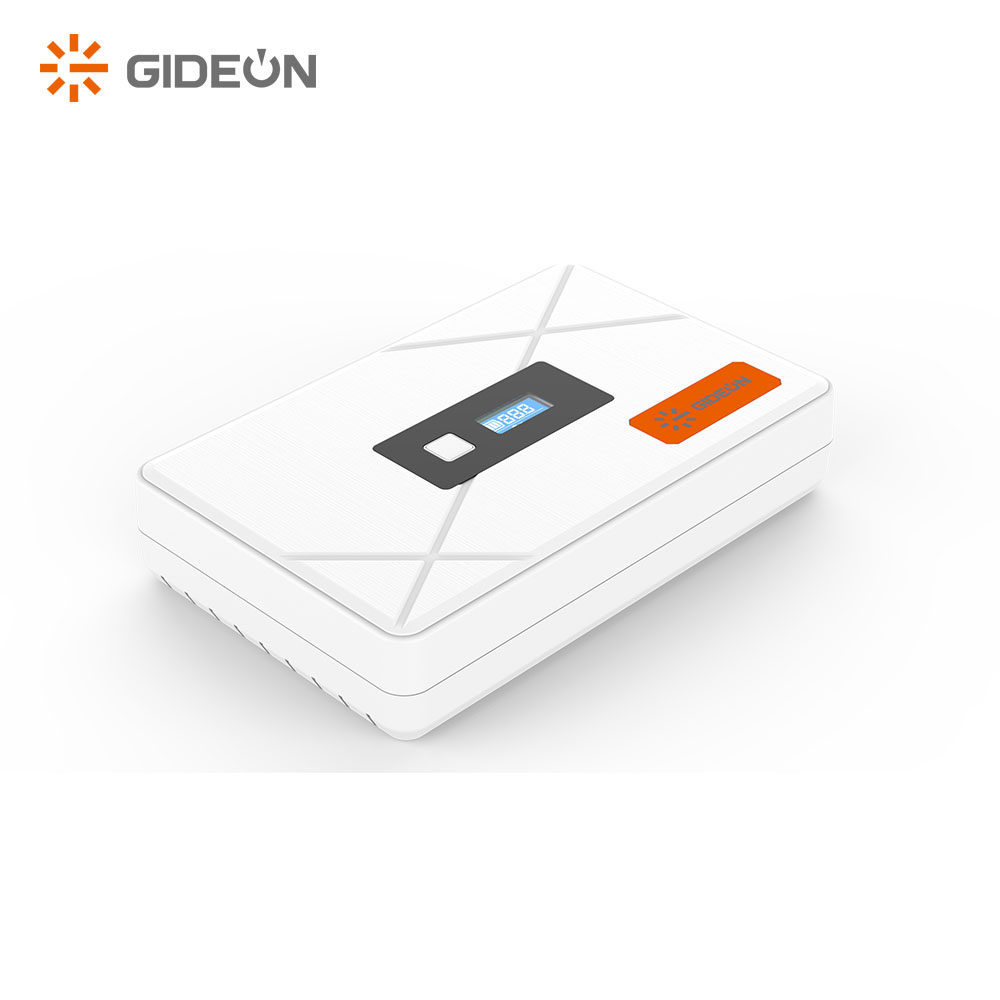

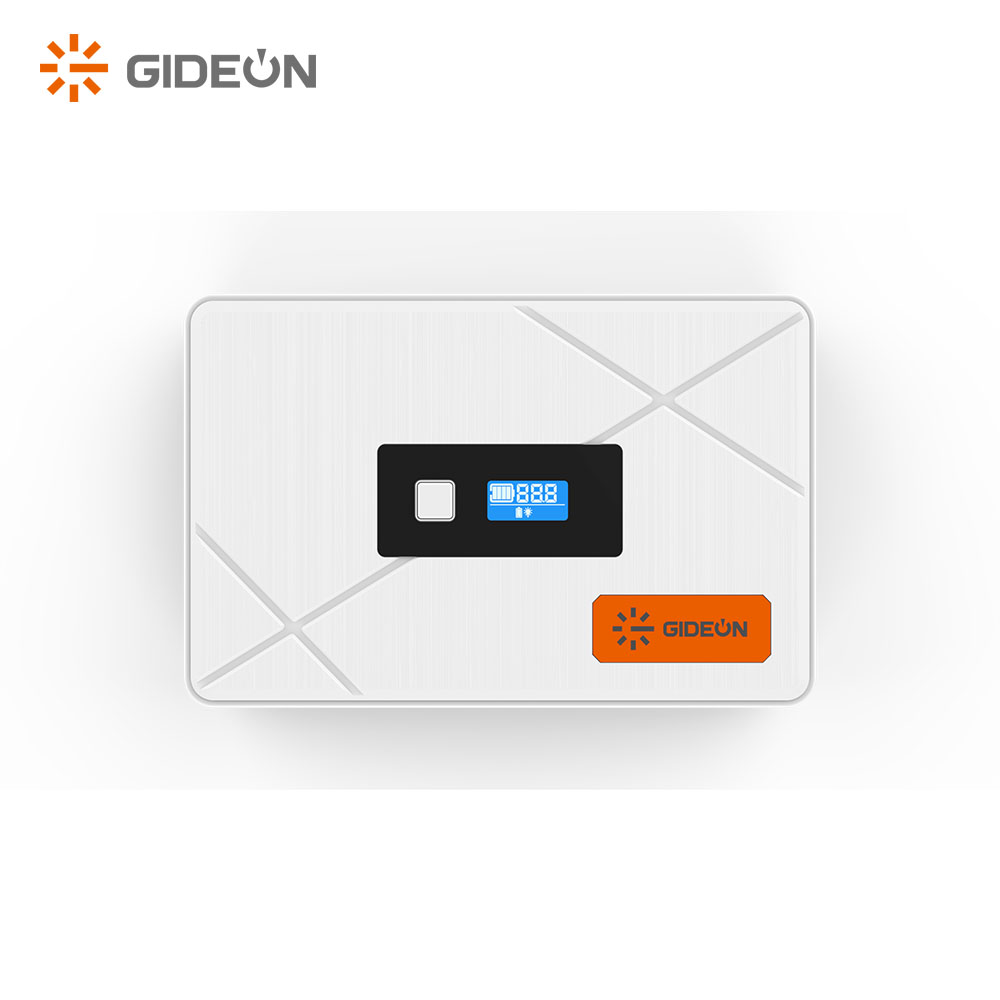

GIDEON Mini DC UPS Battery Backup 10400mAh for WiFi Router, Modem, Security Camera with Lithium Battery

The GD-DC-UPS-016 is a compact uninterruptible power supply designed for low-power network devices such as routers, modems, IP cameras, and VoIP equipment. It features a built-in 10400mAh lithium-ion or LiFePO4 battery (4x 18650 cells) with two output power options: 18W and 36W. The UPS supports ultra-wide input voltage of 85-265VAC (50/60Hz), making it suitable for global use. Outputs include USB 5V/2A, adjustable DC 9V/12V at 1A, and Power over Ethernet (POE) – 15V/0.6A for the 18W model or 24V/0.6A for the 36W model. High efficiency (AC mode >85%, battery mode >90%) and comprehensive protection (over-charge, over-discharge, over-current, overload, over-temperature, short circuit) ensure safe and reliable operation. The ABS housing is available in black or white (custom colors available), with an optional LCD display version. Suitable for home, office, and industrial environments where stable backup power is critical.
Availability:
Quantity:
  • GD-DC-UPS-016

  • GIDEON

Product Description

Parameter

Description

Model

GD-DC-UPS-016

Capacity options

18W / 10400mAh   |   36W / 10400mAh

Input voltage

85-265VAC, 50/60Hz

Output power (Max.)

18W (model 1) / 36W (model 2)

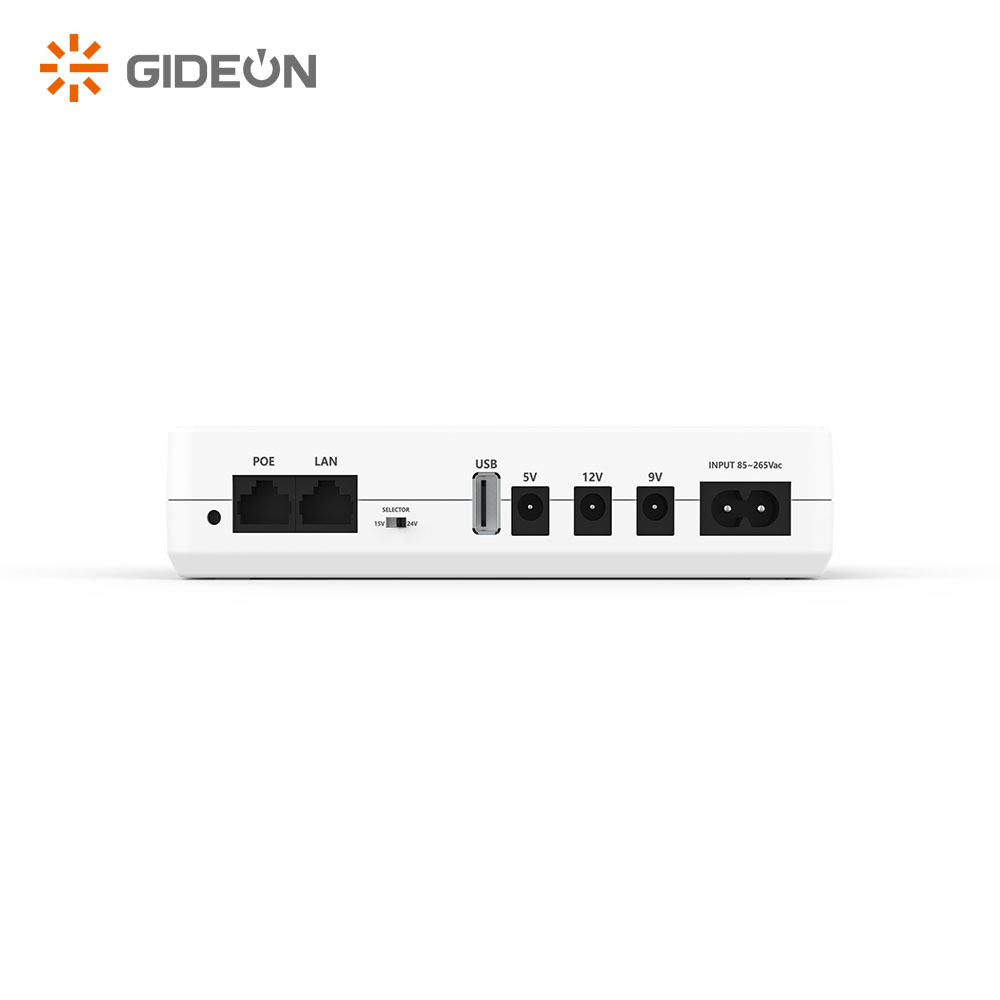

Output voltage & current

USB: 5V/2A
DC: 9V or 12V selectable, 1A
POE (18W model): 15V/0.6A
POE (36W model): 24V/0.6A

Efficiency

AC mode: >85%
Battery mode: >90%

Battery cell size

18650

Battery type

Lithium-Ion or LiFePO4 (optional)

Battery capacity (per cell)

2000mAh ~ 2600mAh

Number of cells

4

Total battery capacity

10400mAh (based on 2600mAh cells)

Shell material

ABS

Shell color

Black, White (custom colors available)

Protection functions

Over-charge, over-discharge, over-current, overload, over-temperature, short circuit

Operating temperature

0°C ~ 40°C

Storage temperature

-10°C ~ 70°C

Relative humidity

10% ~ 90% RH

Altitude

<3000m

Noise level

<30dB

Product size

170 × 110.5 × 32.5 mm (standard)
170 × 110.5 × 37 mm (with LCD display)
